All product info on the page is for reference only,if any changes please in kind prevail.
![](/images/editor/image/20170815215095239523.jpg)
![](/images/editor/image/20170815215013921392.jpg)
![](/images/editor/image/20170815215092559255.jpg)
![](/images/editor/image/20170815215014801480.jpg)
![](/images/editor/image/20170815215041194119.jpg)
![](/images/editor/image/20170815215061356135.jpg)
![](/images/editor/image/20170815215032873287.jpg)
![](/images/editor/image/2017081521500882882.jpg)
![](/images/editor/image/20170815215096369636.jpg)
![](/images/editor/image/20170815215019201920.jpg)
![](/images/editor/image/20170815215084488448.jpg)

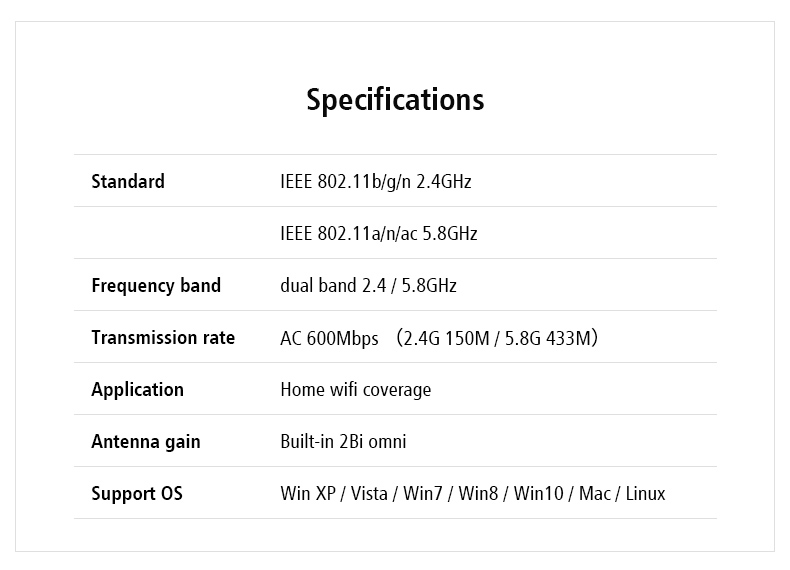

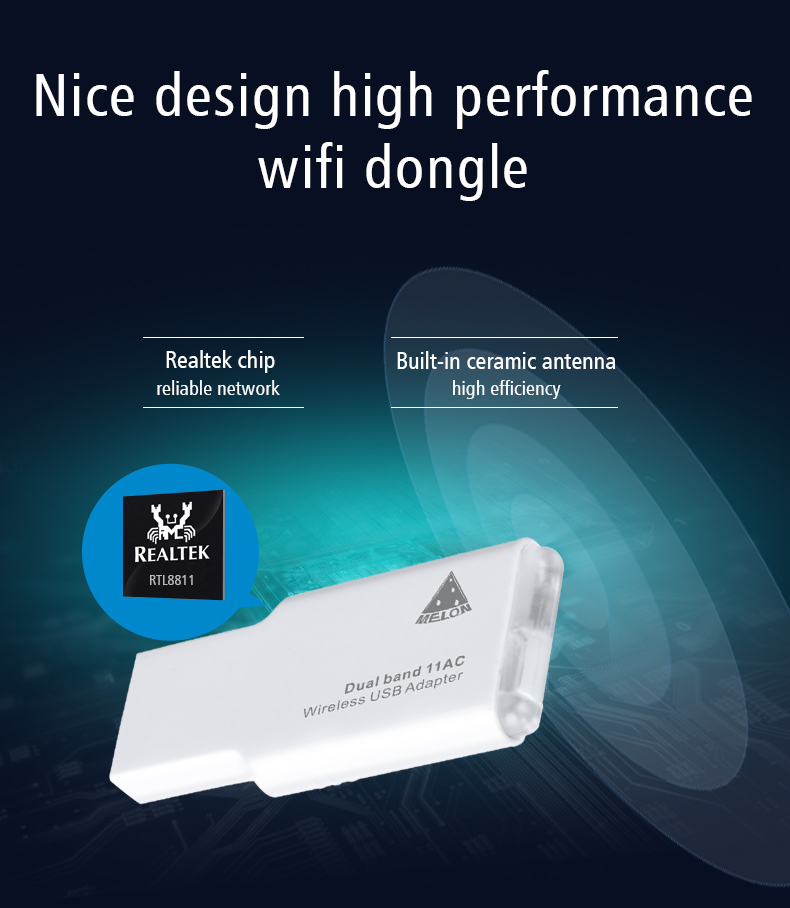

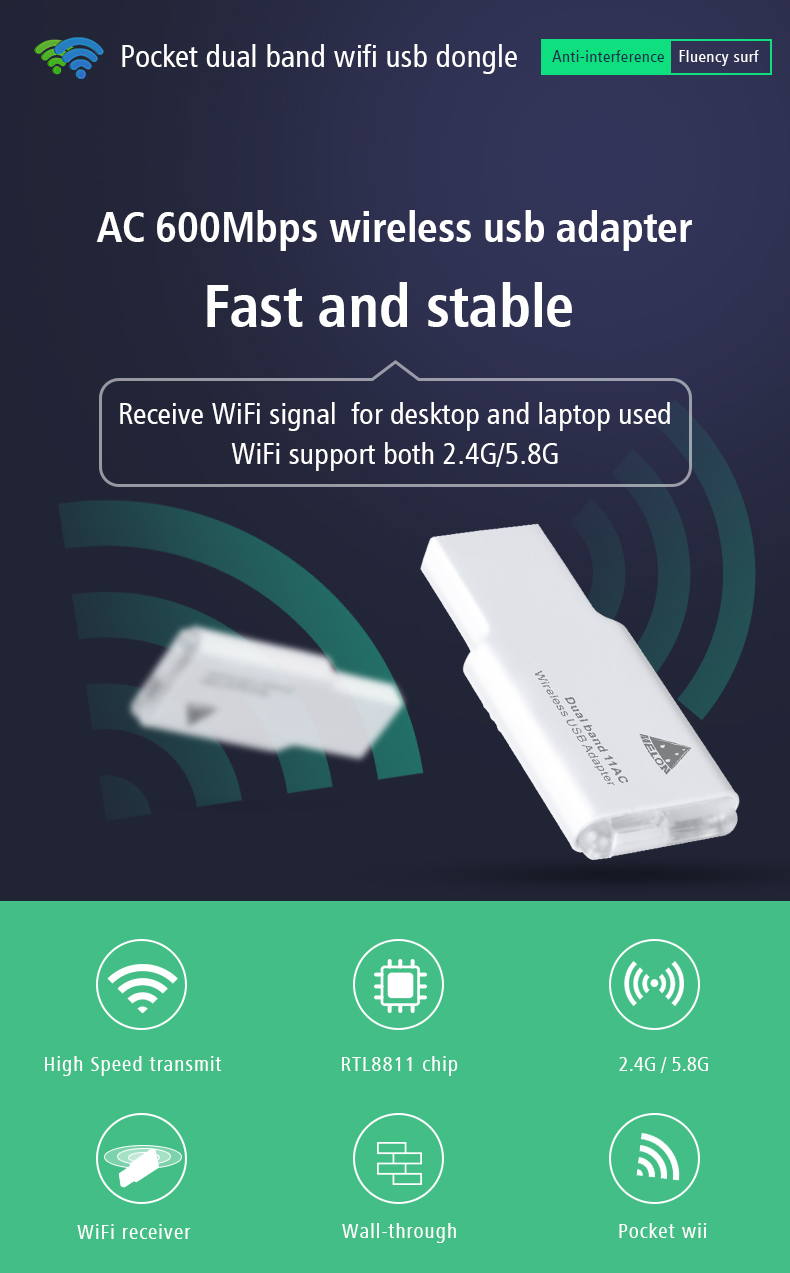

Chipset |
Realtek RTL8811AU |
Interface |
USB2.0 |

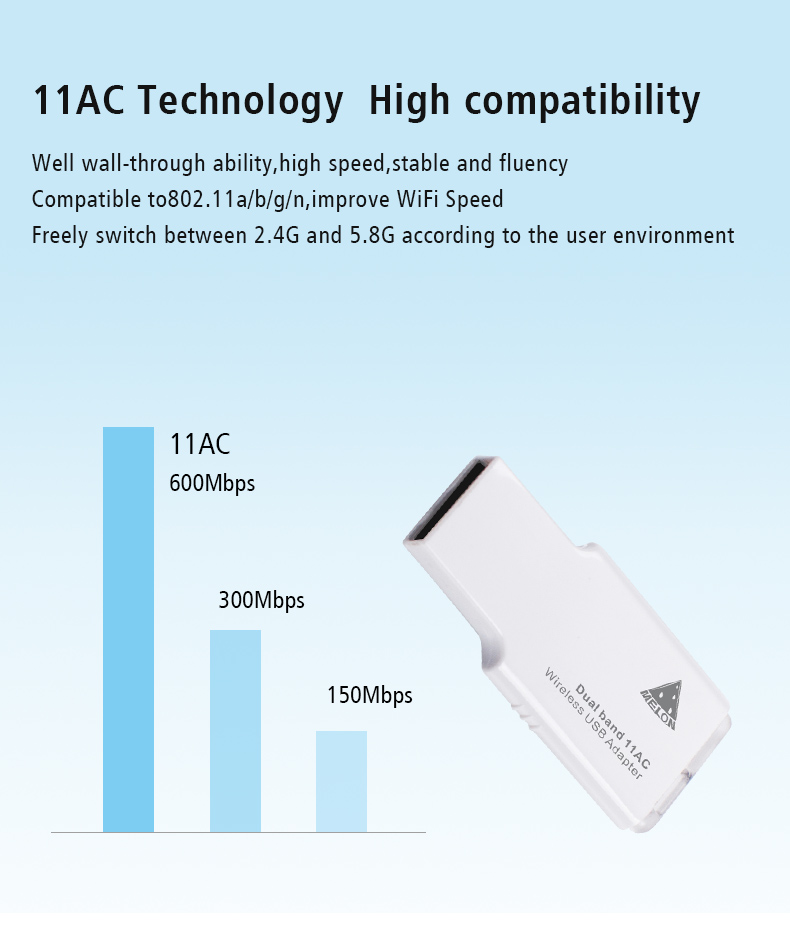

Satandard |
5G:IEEE 802.11ac/a 2.4G:IEEE 802.11n/g/b |

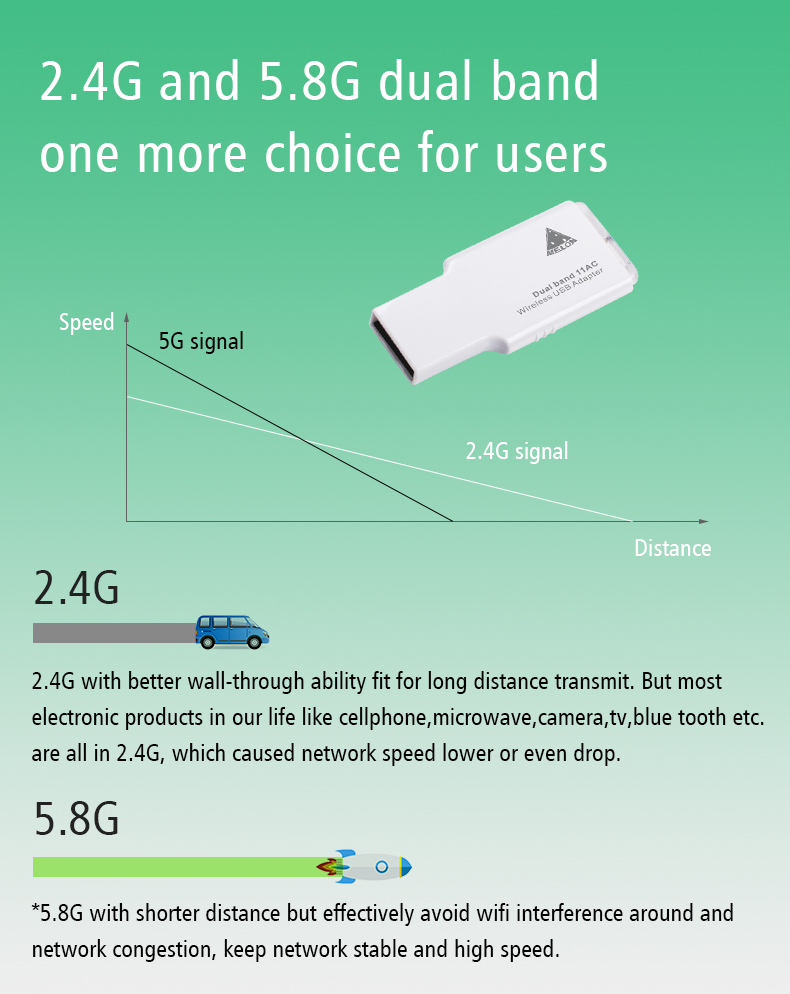

Frequency band |
2.4GHz / 5.8GHz |
Wireless Encryption |
WPA/WPA2/WPA-WPA2/802.1x ,64/128 bit WEP |
Antenna |
Omni-directional Antenna 2dBi |
Soft AP |
Support |
Transmit Speed |
802.11b: 1/2/5.5/11Mbps 802.11g: 6/9/12/18/24/36/48/54Mbps 802.11n: up to 150Mbps 802.11ac: up to 433Mbps |
Working Channel |
1 ~ 13(2.4G) 36 ~ 161 (5.8G) |
Power |
15dBm (Typical) |
Sensitivity |
11n:-68dBm@130M; -68dBm@108M 11g: -69dBm@54M 11b: -85dBm@11M 11ac: -59dBm@433M |
Supported OS |
WinXP/Vista/Win7/Win8/Win8.1 Mac OS//Linux |
Environment |
Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10% ~ 90% RH (Non Condensing) Storage Humidity: 5% ~ 95% RH (Non Condensing) |
